China Top Quality DC Submersible Solar Water Pump Price for Irriation (Submersible Solar Pump)

<

Solar Pump for Deep Well Product Benefits: 1. Made of stainless steel, non-sensor shielding motor, motor efficiency over 90%. 2. Permanent magnet, brushless DC motor for long lifetime. 3. Powered by solar panel directly, fully automatic operation, remote operation safeguards. 4. Advanced controller with MPPT technology for maximum solar power. 5. Prevent frequent startup of low solar power, the controller prolongs the motor lifetime. 6. The pump includes Over-voltage protection / Under-voltage protection / Over-current protection / Over-load protection / Lightning protection, protection against dry-running. 7. Automatic restart when water returns to the well or when the motor temperature returns to the safety range. Technical Data:
3SI1.5S Series (1.5T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
3SI1.5/7-0.18 180 72V 88V 24 30 1.5 76 1 IP68 76 740
3SI2.5/5-0.18 180 72V 88V 16 25 2.5 76 1 IP68 76 720
3SI2.5/7-0.25 250 72V 88V 22 32 2.5 76 1 IP68 76 770
3SI2.5/10-0.37 370 72V 88V 32 42 2.5 76 1 IP68 76 860
3SI2.5/15-0.55 550 72V 88V 46 63 2.5 76 1 IP68 76 890
3SJ1.5 Series (1.5T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
3SJ1.5/14-0.37 370 110V 140V 48 59 1.5 76 1 IP68 76 950
3SJ1.5/20-0.55 550 110V 140V 69 84 1.5 76 1 IP68 76 1100
3SJ2.5 Series (2.5T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
3SJ2.5/10-0.37 370 110V 140V 27 42 2.5 76 1 IP68 76 770
3SJ2.5/15-0.55 550 110V 140V 41 63 2.5 76 1 IP68 76 890
4SJ1.5 Series (1.5T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ1.5/10-0.37 370 110V 140V 49 70 1.5 100 1.25/1.5 IP68 96 774
4SJ1.5/14-0.55 550 110V 140V 68 98 1.5 100 1.25/1.5 IP68 96 890
4SJ2 Series (2T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ2/8-0.37 370 110V 140V 44 56 2 100 1.25/1.5 IP68 96 719
4SJ2/11-0.55 550 110V 140V 61 77 2 100 1.25/1.5 IP68 96 809
4SJ4 Series (4T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ4/6-0.37 370 110V 140V 30 43 4 100 1.25/1.5 IP68 96 694
4SJ4/8-0.55 550 110V 140V 39 58 4 100 1.25/1.5 IP68 96 766
4SJ6 Series (6T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ6/6-0.37 370 110V 140V 18 33 6 100 1.25/1.5 IP68 96 694
4SJ6/7-0.55 550 110V 140V 26 46 6 100 1.25/1.5 IP68 96 770
4SJ8 Series (8T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ8/7-0.55 550 110V 140V 19 32 8 100 1.25/1.5 IP68 96 746
4SJ10 Series (10T/H)
Model Power MPPT Voltage open-circuit voltage Rated Head Max Head Rated Flow Inlet Outlet Protection grade Dimension
  W V V m m T/H mm Inch   Diameter(mm) Height(mm)
4SJ10/4-0.55 550 110V 140V 14 19 10 100 1.25/1.5 IP68 96 708
Applications: 1. Tank/Cistern filling 2. Village or family water supply 3. Water supply for farm 4. Garden/courtyard irrigation systems 5. Livestock watering 6. Swimming pool filling 7. Fountains 8. Water supply for bivouac or camping car 9. Solar water circulating system 10. Renewable energy projects At Working Site Delivery If you have any questions, please feel free to contact us anytime. Sales manager: Vincent Guo Office tel: +0086-371-55019599 After sales: +0086-371-67990387 Accessories: +0086-371-55019184 Website: www.hanfagroup.com www.hanfaa.com

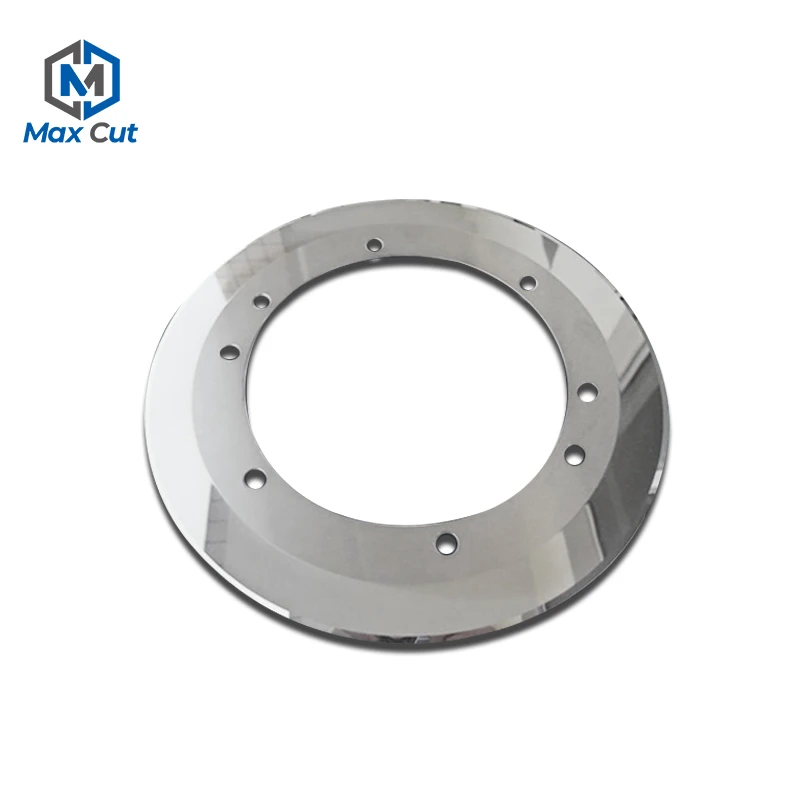

Slitting Blade
